Gen II GTM Front Grille


 << Mount DRLs                                                 Forward Parking Assist - Circuit 3/9 >>

Major System Category: Body (Hood)
Task: Install front grille
Parts: Vraptor Gen II Grille
Prerequisite Tasks: fender louvers
Additional Costs: $78
Time Requirement: 3 hours
Date Started: October, 10, 2012
Date Completed: October, 12, 2012
The GTM has to have a grille. This is a sports car with great lines. I don't remember if the Gen II has a screen mesh or just leaves things open. Either way, it is kind of ugly. After all, who wants to look into the front of a car and see the radiator? The grille adds cost to the kit and mesh is a cheap alternative. This is not a criticism, just a fact. A builder on a budget can go either way.
The grill come with three brackets. The center is a bit bigger than the sides. The end with the hole in it is the  top of the bracket.


The brackets need to be bent a certain way. I used a vice to make the bends.
The front grille is another Vraptor design. This is a totally optional part. The car will function without this addition. However  anyone building a GTM is going to consider using some of what Vraptor has to offer. On top of that Shane is a great guy. He posts frequently on the forums. He will answer questions via email. Stuff always shows up fast. I think I am on order #4 right now.
This is the grille prior to installation. She is painted and bonded at this point.
One thing mentioned in the instructions is that the front end opening (where the grille is mounted) is not centered on the hood. It is off by about 1 inch (sigh). Basically the instructions advise that you can center the grille to the car and look weird, or you can center the grille inside the opening and look okay. (Again, I do not understand why the hood is so off.)

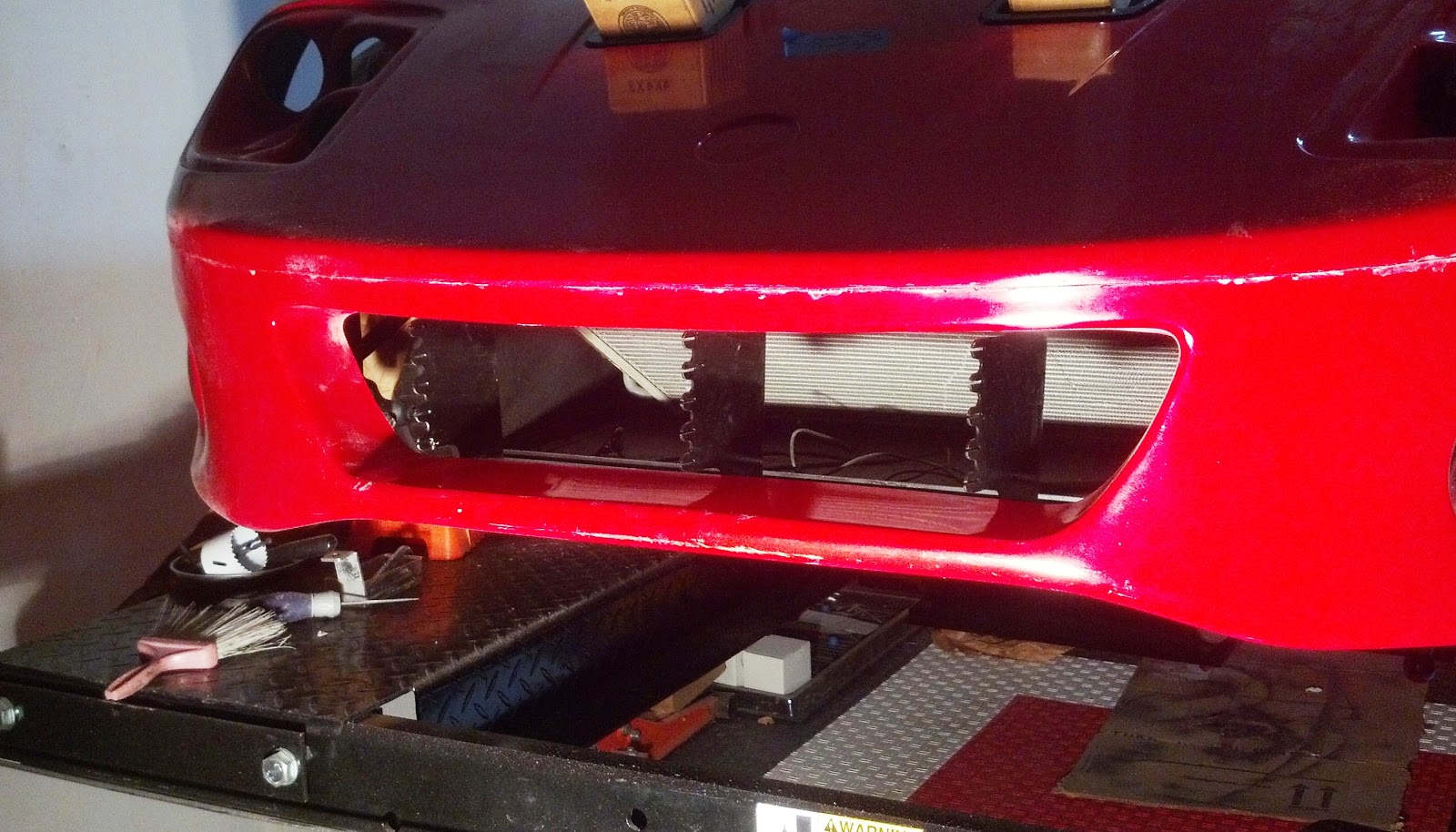

This is the grill opening with the three brackets in place. I was just getting a sense for where they needed to go.  Clearly visible is the radiator, AC condenser and fan assembly (yuck!).
This is the grille centered inside the opening. Once I started working on the front end of the hood, I just kept going.  October was basically spent working on the hood.
 The grille mounts on the inside lips that form the opening. The test mount was with the parts unpainted and held together with Gorilla Tape. I raised the lift to chest level and went to work. I think I even ran the laser level to see the center of the hood versus the center of the grille opening. Once I was satisfied that everything was going to be okay. I used 3M 8115 panel bond to permanently bond the grille and painted it gloss black.

A different angle.
